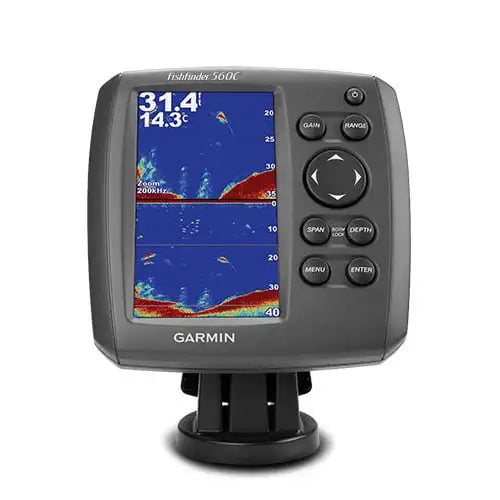

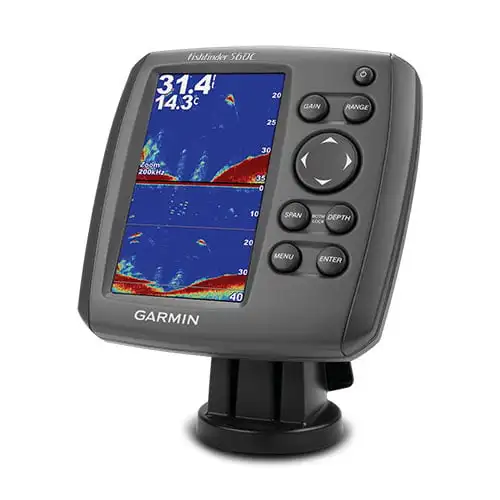

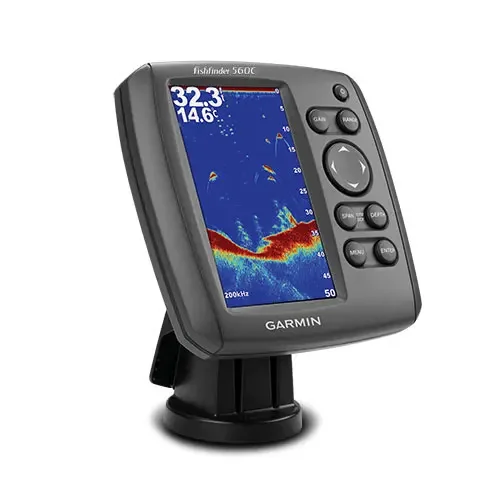

Garmin Marine Por Fishfinder 560C For Fishing Vessels
Garmin Marine Por Fishfinder 560C For Fishing Vessels
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Certification: CE
DIY Supplies: Electrical
Display resolution, WxH: 480 x 800 pixels
Display size, WxH: 2.9" x 4.0" (7.4 x 10.16 cm); 5" diag, (12.7 cm)
Display type: WVGA, 256 colors
Electronic: Yes
Frequencies supported: 50/200kHz
High-concerned chemical: None
Model: Fishfinder 560C
Origin: Mainland China
Part: Fishfinder 560C
Physical dimensions: 15.2 x 15.0 x 4.6 cm
Place of Origin: China
Voltage range: 8V - 28V input
Water rating: IPX7
Weight: 17.6 oz (499 g)
Garmin Marine Portable Fishfinder 560C For Fishing Vessels
Important note : the price on the website is not correct , pls contact us for the price and delivery time , thanks for your understanding.
Fishfinder 560C Features:
Perfectly designed for fishing vessels
The Fishfinder 560C is perfectly designed for fishing vessels. It scans waters with 600 watts (RMS) power, extra-sensitive Garmin HD-ID™ target tracking technology and the ability to scan bottom profiles down to 1,500 feet in salt water.
A transducer kit includes a transducer adopter. Professional fishermen can subscribe suitable transducer in need.
5” sunlight-readable WVGA glass bonding display
Fishfinder 560C comes with a high resolution
(480 x 800 pixels), full colors (256 colors), and sunlight-readable 5” WVGA display.
A glass-bonded finish lens has placed on it to prevent fogging and increase contrast.
Dedicated button for most common used function
Benefit for the professional fishermen like you, Fishfinder 560C features with dedicated button on its right side for you to quickly adjust the setting you need for “Gain”, “Range”, and “Zoom” function.
Up-and-down split screen
Putting its 5” WVGA display vertically, Garmin offers you an intuitive comparison when using the
“Split Screen” on Zoom or Dual Frequency page.

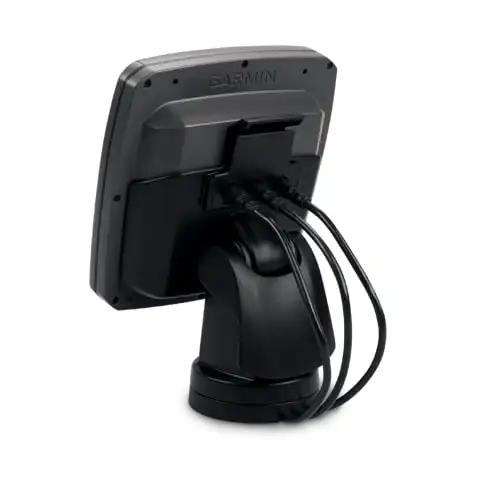

Quick installation mount
Are you worried about your fishfinder being stolen? Easily remove Fishfinder 560C from mount
and take the device with you off boat. The Fishfinder 560C is one of the most intuitive fishfinders
in the market. Installation takes only a few minutes with using the tilt/ swivel mount and versatile
transom/trolling motor-mount transducer included in the box.
Fishfinder 560C Specifications:
Physical & Performance |
|
| Physical dimensions | 6.0" x 5.9" x 1.8" (15.2 x 15.0 x 4.6 cm) |
| Display size, WxH | 2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm) |
| Display resolution, WxH | 480 x 800 pixels |
| Display type | WVGA, 256 colors |
| Weight | 17.6 oz (499 g) |
| Water rating | IPX7 |
Features & Benefits |
|
| Audible alarms | √ |
| Dual-frequency (50/200 kHz) sonar capable | √ |
| Dual-beam (77/200 kHz) sonar capable | × |
| Split-screen zoom | √ |
| Ultrascroll® (displays fish targets at higher boat speeds) | √ |
| Fish Symbol ID (helps identify fish targets) | √ |
| AutoGain Technology (minimizes clutter, maximizes targets) | √ |
| Whiteline (indicates hard or soft bottom) | √ |
| Adjustable depth line (measures depth of underwater objects) | √ |
| A-scope (real time display of fish passing through transducer beam) | √ |
| Bottom lock (shows return from the bottom up) | √ |
| Water temperature log and graph | √ |
| Water temperature sensor included | √ |
| Water speed capable (displays speed on water) | √ |
Other Specs |
|
| Frequencies supported | 50/200kHz |
| Transmit power | 600W (RMS)/4,800W (peak to peak) |
| Voltage range | 8V - 28V input |
|
Maximum depth Additional |
1,500 ft saltwater* *Depth capacity is dependent on water bottom type and other water conditions. |
